Choosing the Right Die Material for Foil Stamping, Embossing, and Letterpress

When executing high-end print processes like hot foil stamping, blind embossing, or letterpress, choosing the right tool is critical: Which die material should you use to achieve the perfect tactile impression? If you’re new to intaglio, our guide on what engraved printing is and how it works is a good starting point. Selecting between budget-friendly photopolymer plates and heavy-duty metal dies (such as copper, brass, or steel) is the single most crucial technical decision that dictates the precision, depth, and thermal efficiency of premium invitation production.

For print professionals, designers, and print-brokers, this guide provides a direct technical specification and performance comparison. We analyze the heat transfer efficiency, mechanical durability, and precision depth control of photopolymer and metal dies, delivering a definitive best-use matrix for foil stamping, sculptured embossing, and deep letterpress on heavy cotton paper so you can achieve flawless results and avoid costly production failures.

In this comprehensive guide, we will explore the nuances of die materials, examining their technical specifications, thermal properties, and mechanical strengths to help you make informed decisions for your next luxury print run.

The Foundation of Premium Print: Why Die Material Matters

When pressing foil into soft cotton or embossing a multi-dimensional crest, the die acts as the physical bridge between your digital design and the tangible paper. The material you choose dictates how heat is transferred, how sharply a line can be etched, and how well the die holds up under immense pressure.

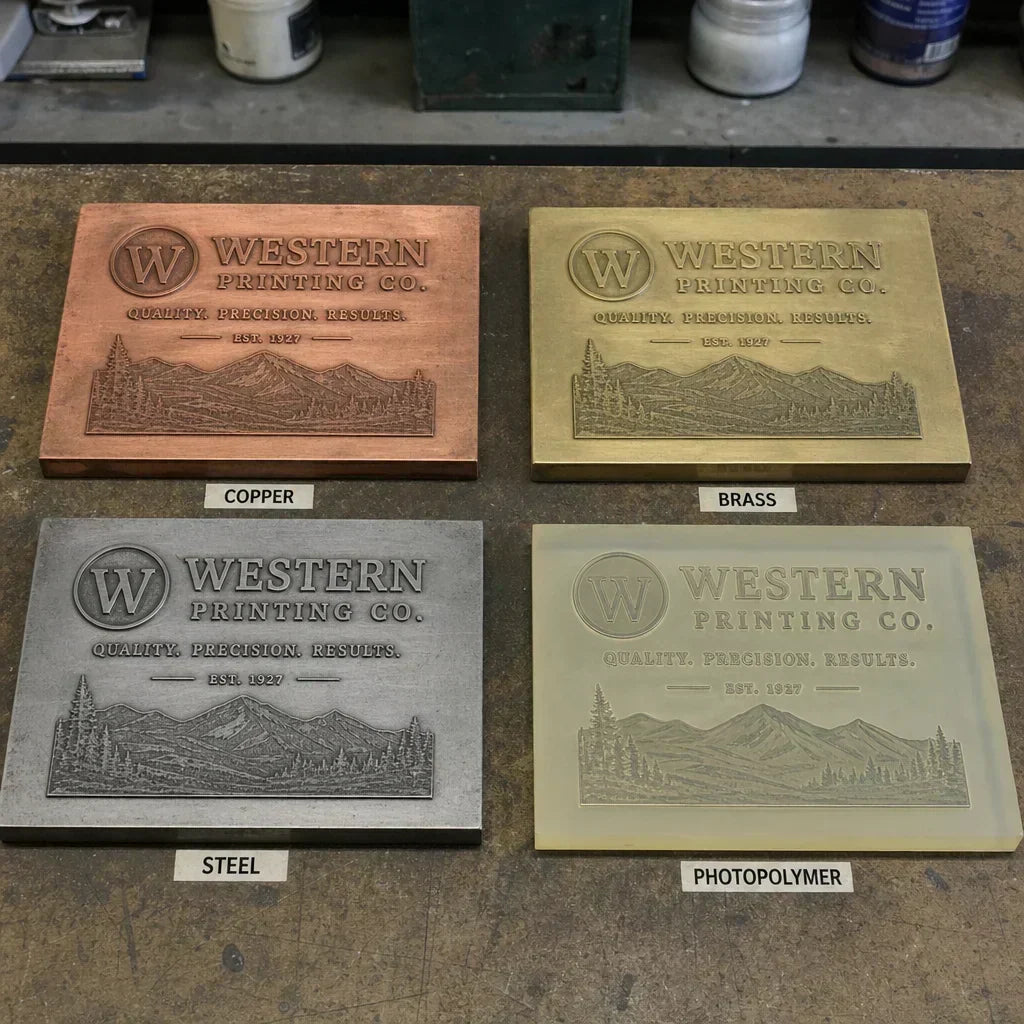

Selecting the wrong material can result in filled-in text, blurry edges, inconsistent foil coverage, or a die that prematurely degrades mid-run. To prevent this, we must look at the specific characteristics of the four primary die materials: photopolymer, copper, brass, and steel.

Photopolymer: The Accessible Entry Point

Photopolymer plates are created using a light-sensitive resin that hardens when exposed to UV light. The unexposed areas are washed away, leaving a raised relief of your design.

• Technical Specs: Typically available in various thicknesses (e.g., 0.95mm, 1.52mm). Hardness varies but is generally much softer than metal.
• Performance Trade-offs: Photopolymer is fast to produce and highly cost-effective. However, it lacks the structural integrity for deep, sharp impressions on dense papers and cannot retain heat efficiently.
• Best For: Short-run letterpress on standard paper weights.

When conducting a cost-benefit analysis of photopolymer letterpress plates, the upfront savings are undeniable for runs under 500 pieces. However, if your design requires crisp hot foil or you are printing on highly textured, dense stock, the limitations of plastic resin quickly become apparent.

Copper: The Standard for Flawless Foil

Copper dies are chemically etched and prized in the hot foil stamping industry for their outstanding thermal properties.

• Technical Specs: Exceptionally high thermal conductivity. Etches cleanly to yield razor-sharp edges.
• Performance Trade-offs: More expensive than photopolymer, but much more affordable than hand-engraved brass. Copper is relatively soft compared to steel, meaning it can deform under extreme pressure over long production runs.
• Best For: High-detail hot foil stamping, single-level embossing, and high-quality letterpress.

The choice between copper and photopolymer for hot foil stamping is easily settled by physics. Copper maintains and recovers heat instantly upon contact with paper, ensuring the foil releases perfectly from the carrier film. Furthermore, the fine detail resolution in copper stamping dies is unparalleled for intricate typography, delicate borders, and micro-patterns. This is the same precision that defines our intaglio wedding invitation process.

Brass: The Artisan's Choice for Sculptural Detail

Brass is a robust alloy of copper and zinc. Unlike photopolymer or copper, which are chemically etched, brass dies are primarily cut using CNC routing and finalized by hand.

• Technical Specs: Excellent heat retention, superior hardness to copper, and easily machinable.
• Performance Trade-offs: High upfront cost and longer production times due to the labor-intensive engraving process.
• Best For: Multi-level embossing, sculptured emboss, and combined foil-and-emboss (fluted) dies.

When evaluating the best die material for multi-level sculptured embossing, brass is the undisputed champion. The benefits of brass for intricate 3D sculptural effects lie in how the metal can be carved. Expert craftsmen use hand-engraved brass dies to create sloping curves, beveled edges, and varying depths that chemical etching simply cannot achieve. This allows for precision depth control, turning a flat family crest into a lifelike, three-dimensional masterpiece on the paper.

Manufacturing Methods: How Dies Come to Life

Understanding the material is only half the battle; knowing how the design is cut into the material provides deeper insight into its capabilities.

Machine-Etched vs CNC-Milled Invitation Dies

• Machine-Etched (Copper/Magnesium): The design is transferred to the metal using a photo-resist coating, and an acid bath eats away the non-image areas. This is excellent for flat, single-level designs. It provides sharp, sheer drop-offs, making it perfect for crisp foil stamping and letterpress.
• CNC-Milled (Brass/Steel): A computer-guided drill bit carves the metal. Milling allows for angled shoulders, domed surfaces, and multi-level stepped designs. While CNC milling does the heavy lifting, high-end brass dies are often finished by a master engraver who uses hand-tools to smooth out tool marks and sharpen internal corners.

Transitioning from photopolymer to metal for long runs is a natural pivot for growing print studios. While you might prototype an invitation suite using a photopolymer plate, scaling up to larger quantities—especially on demanding stocks—requires the shift to machine-etched copper to maintain absolute consistency.

Technical Variables for Premium Finishes

The success of your invitation suite relies on pairing your die material with the right paper and the right printing technique.

Heat Transfer Efficiency of Metal Stamping Dies

Hot foil stamping requires a delicate balance of Heat, Pressure, and Time (dwell). Copper and brass offer the highest heat transfer efficiency among metal stamping dies. When the heated die strikes the cool paper, it loses a fraction of its temperature. Copper recovers this heat almost instantly from the heating block, allowing the press to run at consistent speeds without "cold spots" where foil fails to adhere properly. Photopolymer cannot conduct heat efficiently, making it unsuitable for professional foil stamping.

Die Material Compatibility with Heavy Cotton Paper

Luxury invitations frequently utilize thick, uncoated cotton stocks, such as 300gsm to 600gsm weight papers. Understanding how your die material interacts with heavy cotton paper is crucial. Cotton paper is inherently soft and pillowy. To get a crisp, deep letterpress bite or a sharp blind emboss, you need a rigid die. Photopolymer tends to compress and mushroom under the extreme pressure required to crush heavy cotton fibers, leading to widened, distorted text. Copper or brass dies easily compress the soft cotton fibers, leaving a beautiful, deep, and razor-sharp impression.

How to Select Die Depth for Blind Embossing

Blind embossing relies entirely on shadows and highlights to be visible on the page. Knowing how to select the correct die depth separates standard work from luxury craftsmanship.

• Standard Etch: Usually around 0.040" to 0.065" deep. Ideal for standard paper weights.
• Deep Etch: Up to 0.125" deep. Required for heavy cotton stocks. For deep, single-level blind embossing on heavy cotton, an extra-deep etched copper die paired with a rigid poured counter-die is ideal. If you want the emboss to have rounded, sculpted edges rather than flat, sheer drops, you must upgrade to a CNC-milled brass die.

The Ultimate Best-Use Matrix

To simplify your production planning, use this guide to match your specific finishing technique with the optimal die material.

1. Hot Foil Stamping

• Recommended Die Material: Copper
• Alternative: Brass (if combining foil and embossing in one pass).
• Why: Copper provides the best heat recovery, allowing for consistent foil release. It etches beautifully to capture hairline serifs and fine details without the risk of the image area breaking under pressure.

2. Letterpress (Ink)

• Recommended Die Material: Photopolymer (for standard/short runs) or Copper (for premium/long runs).
• Alternative: Magnesium (a cheaper metal alternative for medium runs).
• Why: Photopolymer is cost-effective and perfectly suitable for standard letterpress on smooth or medium-weight papers. However, if using ultra-heavy cotton stock where a very deep impression is desired, copper will provide a sharper edge that won't degrade.

3. Blind Embossing (Single-Level)

• Recommended Die Material: Deep-etched Copper or CNC-Milled Brass.
• Alternative: Magnesium (for short runs where budget is tight).
• Why: Copper provides a sharp, sheer edge that pushes the paper up cleanly. A proper fiberglass or resin counter-die is required to force the paper into the metal cavity.

4. Sculptured Embossing (Multi-Level / 3D)

• Recommended Die Material: Hand-Engraved Brass.
• Alternative: None.
• Why: True sculptural embossing requires varying depths, sloping angles, and domed curves. Acid etching cannot achieve this. Only a CNC-milled and hand-tooled brass die can properly shape the paper into a 3D masterpiece.

Actionable Tips for Invitation Production

• Always check your line weights: If using copper for foil, ensure your thinnest lines are no smaller than 0.35pt. For photopolymer letterpress, try to keep isolated dots or lines above 0.5pt so they don't snap off on press.
• Consider the counter-die: For any embossing or debossing, the die is only half the equation. The counter-die (the male counterpart that pushes the paper into the metal cavity) must be perfectly cast to match the die, especially when using intricate brass dies.
• Budget for the paper: Don’t blow your entire budget on a hand-engraved brass die only to print on thin paper. Sculptured embossing and deep letterpress require long-fiber, heavy paper to stretch and mold without tearing.

Conclusion

The production of luxury stationery is an ecosystem where paper, pressure, heat, and metal must work in perfect harmony. By understanding the specific strengths of photopolymer, copper, brass, and steel, you can make confident decisions that elevate every print run. To see how these materials perform in a real intaglio press setup, read our step-by-step intaglio printing guide for wedding invitations.
